Vigor 10 Pce Pressure Spindle Set Manual V4699

SKU: VIGV4699

V4699

$917.86

INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Benefits
Contents
Shipping & Delivery

Vigor 10 Pce Pressure Spindle Set Manual V4699

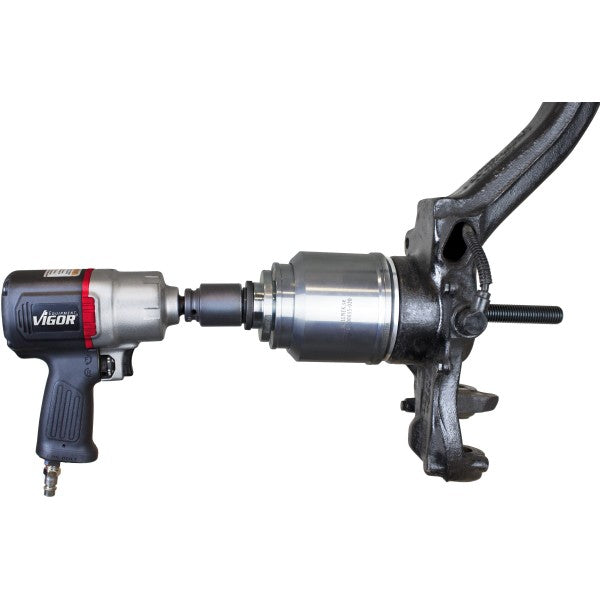

Vigor presents the 10 Piece Pressure Spindle Set, a manual tool set designed to enhance mechanical operations. This set includes four thrust rods of varying lengths to accommodate the use of different tools. With compatibility for V3072, V2858N, V3147, V3649, V3148, V2885, V2920, and V2937, this pressure spindle set is perfect for a wide range of applications. The spindle and adapter are specifically designed for pneumatic operation, enabling the use of an impact wrench with a maximum torque of 100Nm. With a maximum transfer of spindle forces of up to 1 tonne, this set provides reliable and efficient performance. For frequent work involving supporting joints, bushes, and drive shafts, we recommend the use of an 8.5-22 tonne hydraulic cylinder. Experience smooth and effective mechanical drives with the Vigor 10 Piece Pressure Spindle Set. Available now on OzSwiss.

Discover the Vigor 10 Pce Pressure Spindle Set Manual V4699 at OZ SWISS EUROPEAN TOOLS – your trusted source for quality tools and equipment!

  • Valuable and durable due to the high quality of the material (12.9 quality)

  • Flexible application: suitable for impact operation. Compatible with all pulling and pushing systems

  • Cost-efficient alternative to hydraulic cylinders

  • Additional impact function under load

  • Optimised thread pitch of the spindles adapted to the enormous power transmission

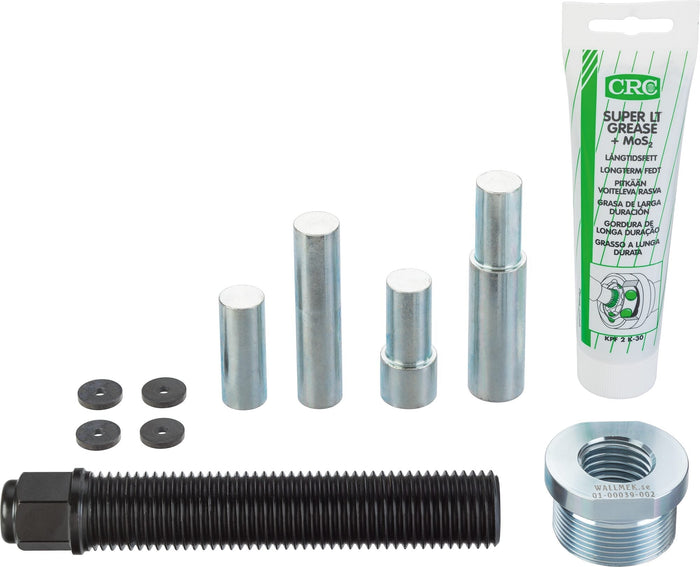

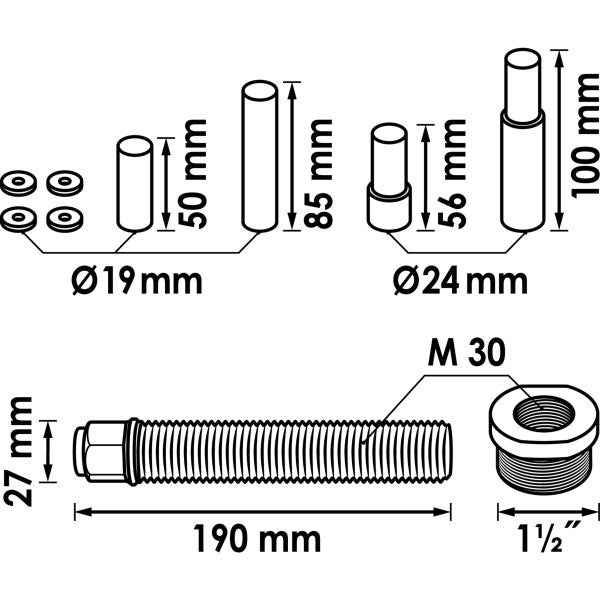

  • V4699-1: Pressure Spindle M30

  • V4699-4: Press Axle 50 x Ø 19mm

  • V4699-2: Adapter 1.1/2" M30

  • V4699-6: Press Axle 56 x Ø 24mm

  • V4699-7: Press Axle 100 x Ø 24mm

  • V4699-5: Press Axle 85 x Ø 19mm

  • V4699-3: Washer Ø 18.8 x 3mm (4 Pc)
