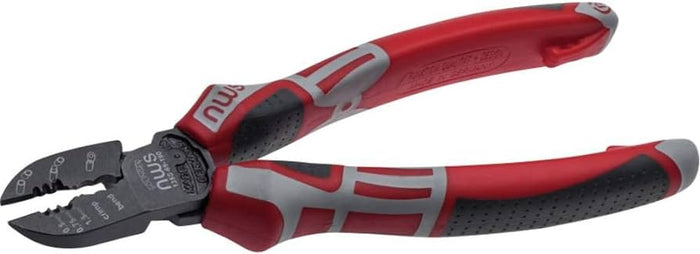

NWS 135-69-190-SB Universal Side Cutter
NWS 135-69-190-SB Universal Side Cutter
NWS 135-69-190-SB Universal Side Cutter
NWS 135-69-190-SB Universal Side Cutter
NWS 135-69-190-SB Universal Side Cutter
NWS Logo

NWS 135-69-190-SB Universal Side Cutter

SKU: NWS135-69-190-SB

135-69-190-SB

$98.25

Suggested Retail Price
INC GST
DESCRIPTION
Specifications
Shipping & Delivery

NWS 135-69-190-SB Universal Side Cutter

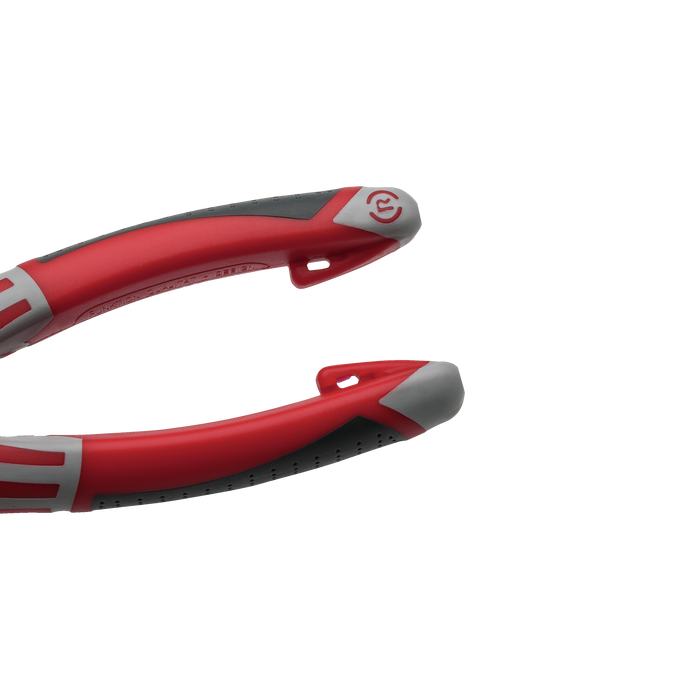

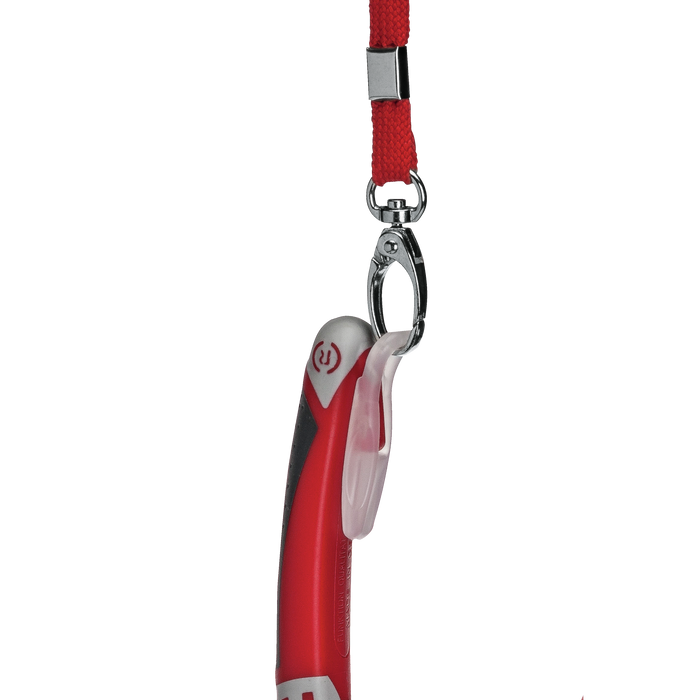

Introducing the NWS 135-69-190-SB Universal Side Cutter, available at OzSwiss. This versatile tool is perfect for all your wire cutting and stripping needs. Designed with a stripping function, it can handle both single and multi-stranded conductors with 0.5 mm² and 1.5 mm² conductor cross-sections. Whether you need to work with CAN bus cables, power cables for various applications like radio, horn, and lights, or power cables with higher current consumption, this side cutter has got you covered. It offers four functions in one tool: cutting, stripping, crimping, and bending. It is suitable for processing both non-insulated and insulated crimp sleeves and plug connectors. The precision cutting edge ensures clean cuts even on the finest wires, and the cutting edges are inductively hardened for durability. The ergonomic SoftGripp handles provide a comfortable grip, and the handles also feature a SystemSocket for holding optional accessories such as the SystemClip for fall protection. Crafted from special tool steel, forged, and oil-hardened, this side cutter is built to last. Get your NWS 135-69-190-SB Universal Side Cutter from OzSwiss today and experience effortless wire processing.

Discover the NWS 135-69-190-SB Universal Side Cutter at OZ SWISS EUROPEAN TOOLS – your trusted source for quality tools and equipment!

135S-69-190-SB
Length - mm 190
Length - in 7 1/2
Cutting edge shape Flush Cut
Soft wire (220 N/mm²) copper, aluminium, plastic - cutting capacity - Ø mm 2
Medium hard wire (750 N / mm²) nail, wire nail - cutting capacity - Ø mm 1
Cable - Al + Cu multi-wired conductor single and stranded conductor - cutting capacity - Ø mm 4
Stripping capacities - mm² 0,5 + 0,75 + 1,5
Stripping capacities - AWG 20 + 18 + 15
Weight - g 260
Length including self-service packaging - mm 255
Width including self-service packaging - mm 65
Height including self-service packaging - mm 25
Weight self-service packaging - g 15
Barcode 40 03758 63562 9
