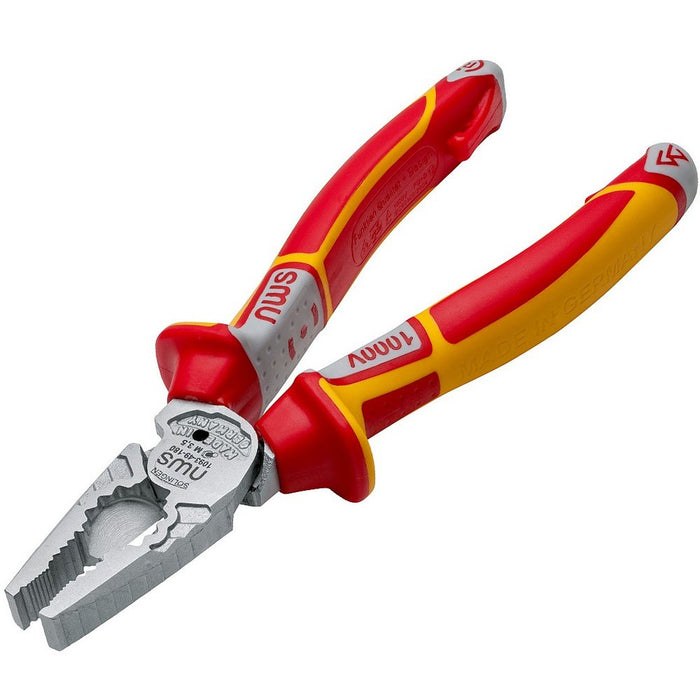

NWS 1093-49-VDE-180-SB High Leverage Combination Pliers CombiMax

SKU: NWS1093-49-VDE-180-SB

1093-49-VDE-180-SB

$73.19

INC GST
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

NWS 1093-49-VDE-180-SB High Leverage Combination Pliers CombiMax

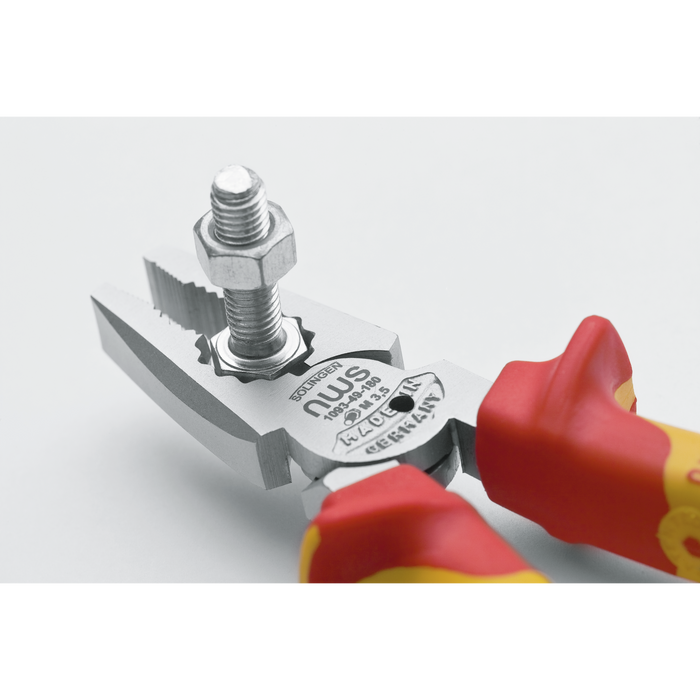

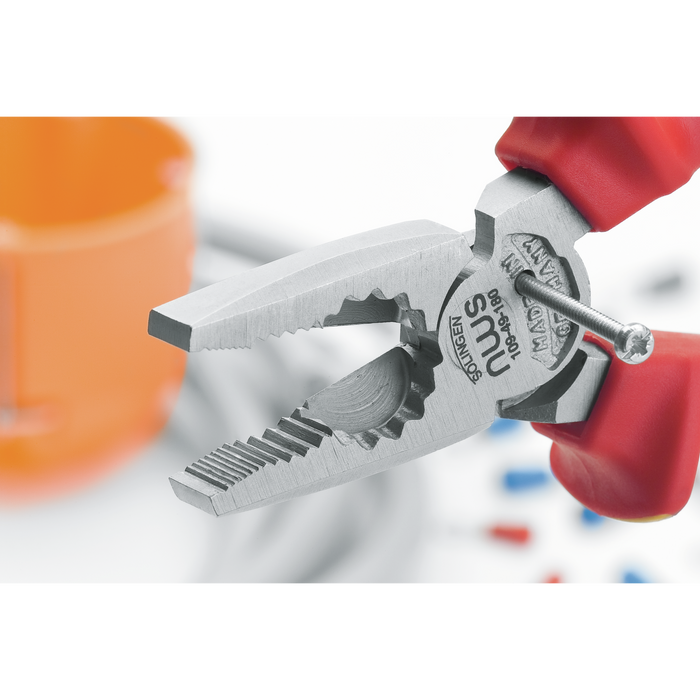

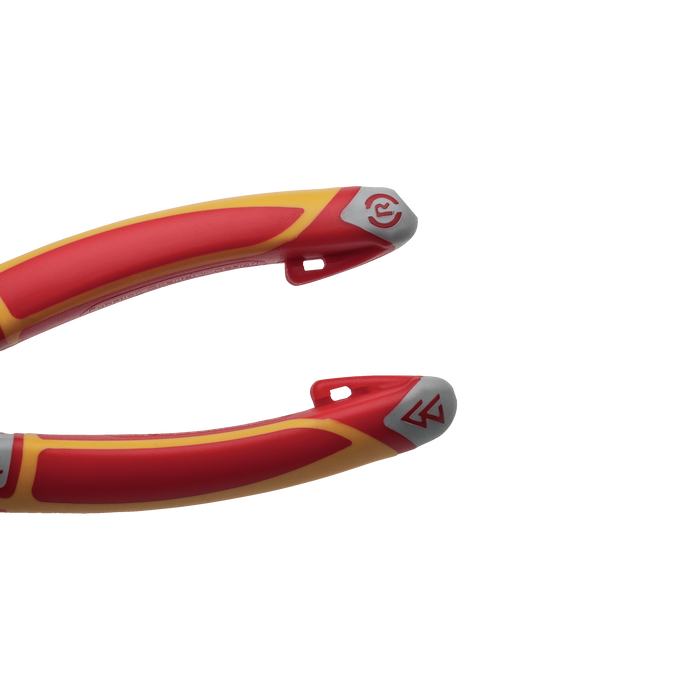

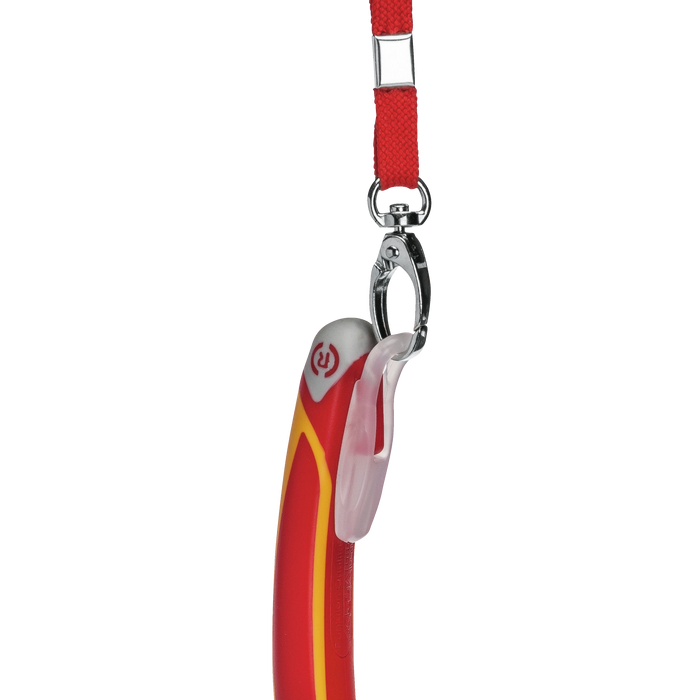

OzSwiss is proud to present the NWS 1093-49-VDE-180-SB High Leverage Combination Pliers CombiMax. This American pattern tool is ideal for a wide range of tasks, including holding, gripping, bending, and cutting work. It is designed for cutting both hard and soft wires, as well as shortening screws M 3.5. The cutting edges are inductively hardened for durability. With a built-in nail and wire holder, this plier offers convenience and efficiency. The gripping zones are specially designed for flat and round materials, providing a secure hold on the workpiece. Additionally, the asymmetric inside jaws enhance grip performance. Equipped with an integrated ring spanner, it offers versatility for various applications. The handles feature ergonomically shaped SoftGripp multi-component safety sleeves, ensuring comfort and safety during use. The handles also feature the SystemSocket, allowing the attachment of optional accessories such as the SystemClip for fall protection. Crafted from forged tool steel and oil-hardened, these pliers guarantee long-lasting quality. Upgrade your tool collection with the reliable NWS 1093-49-VDE-180-SB High Leverage Combination Pliers CombiMax, available at OzSwiss.

Discover the NWS 1093-49-VDE-180-SB High Leverage Combination Pliers CombiMax at OZ SWISS EUROPEAN TOOLS – your trusted source for quality tools and equipment!

  1093-49-VDE-180-SB

Length - mm 180

Length - in 7

Jaw shape Flat jaws

Cutting edge shape Flush Cut

Soft wire (220 N/mm²) copper, aluminium, plastic - cutting capacity - Ø mm 5,2

Medium hard wire (750 N / mm²) nail, wire nail - cutting capacity - Ø mm 3,4

Hard wire (1800 N / mm²) wire rope fiber, steel rope - cutting capacity - Ø mm 2,2

Cable - Al + Cu multi-wired conductor single and stranded conductor - cutting capacity - Ø mm 12

Wrench size - mm 18

Design VDE Design

Cutting edge hardness - HRC 57 - 59

Weight - g 275

Length including self-service packaging - mm 245

Width including self-service packaging - mm 65

Height including self-service packaging - mm 30

Weight self-service packaging - g 15

Barcode 40 03758 60953 8
