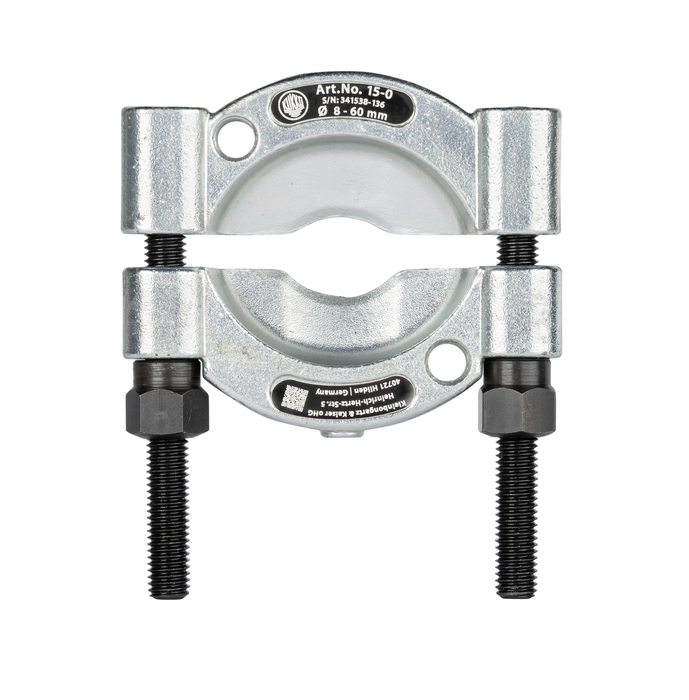

Kukko Disconnector

Together with the extractors of series 18 for extracting ball bearings, roller bearings, inner rings and other parts lying flat

• The sharp cutting edges allow peeling where other types of peeling are inapplicable

• The screw connection of separator and extractor ensures the highest stability during extraction

• If the separating jaws are screwed into the extractor the other way round, the contact surface is enlarged and extracted more gently

• Press the sharp cutting edges of the separator behind the part

• Clamp the cut-off jaws with the aid of the pressure spindle by evenly tightening the adjusting nuts on the side bolts of the cutoff device and make sure that the cut-off blades are seated up to the stop under the part to be removed

• Screw the puller's pull bolts into the threaded holes of the separator as far as they will go

• Hold the separating device and pull the part off safely and carefully by tightening the clamping nut

• Total Width: 100mm

• Total Depth: 19.5mm

• Total Height: 130.5mm

• Width across flats: 17mm

• Cutting Edge Thickness at the tip: 0.3mm

• Rear Cutting Edge Thickness: 5.5mm

• Total Cutting Edge Height: 39.5mm

• Usable Snow Depth: 21mm

• Weight: 0.695kg

• Cut-Off Diameter (Min): 8mm

• Separating Diameter (Max): 60mm

Product Data Sheet
