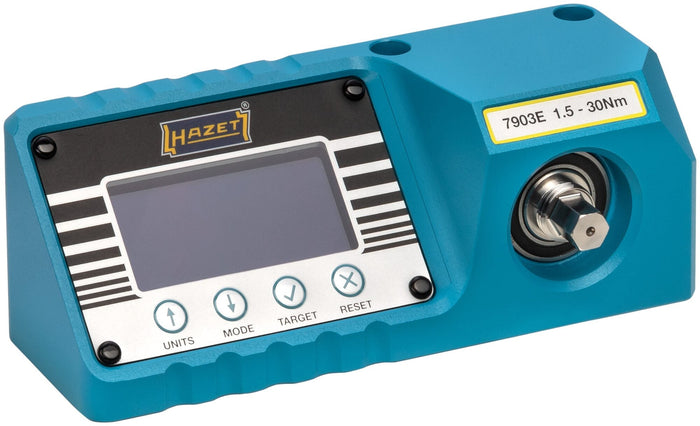

Hazet Torque Tester Electronic 1.5-30Nm 7903E
Hazet Logo

Hazet Torque Tester Electronic 1.5-30Nm 7903E

SKU: HAZ7903E

7903E

$5,832.93

Suggested Retail Price
INC GST
DESCRIPTION
Application
Shipping & Delivery

Hazet Torque Tester Electronic 1.5-30Nm 7903E

Application:
Simple and quick checking of torque wrenches

  • Simple, intuitive operation
  • Giant display with 17 mm large digits
  • Traffic light function for evaluation of the measured value PLUS audible signal
  • Calibrated measuring range in the clockwise direction of rotation
    (measurements from 1 Nm are possible with a display deviation of approx. ± 2%)
  • Fixed external hexagon socket ∙ size 10 mm including adapter Outside hexagon 10 = 3/8 inch → Inside square 10 = 3/8 inch und Outside hexagon 10 = 3/8 inch → Inside square 6.3 = 1/4 inch
  • Switchable torque display in Nm ∙ dNm ∙ cNm ∙ kgfm ∙ kgfcm ∙ gfm ∙ lbf.ft ∙ lbf.in ∙ ft.lb ∙ in.lb ∙ ozfin ∙ inoz
  • Configurable selection of desired units
  • Fixing material (not included in the scope of delivery): hexagon socket screws ISO 4762 – M6 – 8.8
  • Gross weight including plastic case and accessories approx. 2.9 kg
  • Easy entry of up to 15 different target values and the respective permissible tolerance in the range of ± 1 % to ± 15%
  • Precision ± 1% (maximum display deviation)
  • Digital readouts ∙ 3 measurement procedures
    • Automatic click point detection (first peak ∙ click)
    • Peak value measurement (final peak ∙ dial)
    • Tracking measurement / display value (track)
  • Triple signalling of the measurement result:
    • Digit display in 17 mm font size
    • Traffic light function for assessing the torque value (yellow = too low ∙ green = OK ∙ red = too high)
    • Audible signal
  • Robust aluminium housing for workshop use, surface powder-coated
  • Large, high-contrast, luminous easy-to-read LCD display with backlighting
  • Self-sufficient operation possible via power bank (5 V ∙ 1 A)
  • Maximum power consumption: 0.5 Wh ∙ energy efficiency level 6
  • Rapid test function with auto reset, without target value and tolerance specification, without evaluation
  • Compatible with HAZET test software torque testing 7901E-D, micro USB socket for power supply and data transmission
  • Protection rating IP 40, splash-proof display and membrane keyboard
  • 10 adjustable menu languages: German ∙ English ∙ French ∙ Spanish ∙ Italian ∙ Danish ∙ Finnish ∙ Swedish ∙ Norwegian ∙ Portuguese
  • Included in delivery:
    • USB power supply 90-264 volts AC at 47–63 HzOutput voltage: 5 V ∙ 1000 mA ∙ USB 2.0 A socketIncludes mains plug adapters for EU ∙ UK ∙ USA ∙ AUS
    • Cable (2 m) USB 2.0 A plug – USB 2.0 micro B plug
    • Calibration certificate and quick reference guide (detailed operating instructions online for download)
    • Stable mounting on workbench
  • Drive: Hexagon, solid 10 mm (3/8 inch), Square, hollow 6.3 mm (1/4 inch), Square, hollow 10 mm (3/8 inch)
  • Dimensions / length: 175 mm x 64 mm x 72 mm
  • Net weight: 1.15 kg
