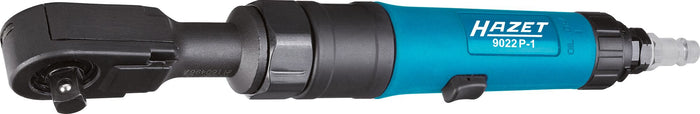

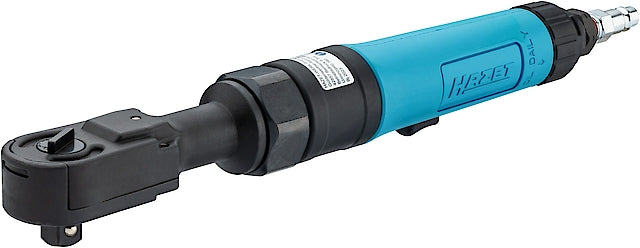

Hazet 1/2" (12.5mm) Square Solid High Performance Air Ratchet 9022P-1

SKU: HAZ9022P-1

9022P-1

$577.91

Suggested Retail Price
INC GST
DESCRIPTION
Specifications
Shipping & Delivery

Hazet 1/2" (12.5mm) Square Solid High Performance Air Ratchet 9022P-1

  • Sturdy workshop construction – especially suitable for continuous operation in industrial production processes

  • Extra-strong head made of heat-treated special steel

  • Sturdy ratchet head suitable for high permanent stress (series production and similar)

  • Completely closed head avoids the entry of swarf etc.

  • Long service life and high power rating of the device (long service life = long operational availability)

  • For manual retightening with torque values: 350 Nm (competing products approx. 250 Nm)

  • Air connection inlet: Inside thread 12.91 mm (1/4″)

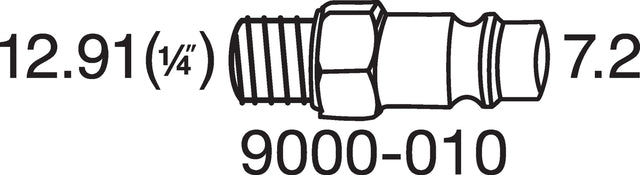

  • Coupler plug: Nominal size 7.2 (included)

  • Sound power level: 99.3 db(A) Lp W

  • Vibration acceleration: 3.00 m/s2

  • Forward and reverse: single-stage (right/left)

  • Output: Square, solid 12.5 mm (1/2 inch)

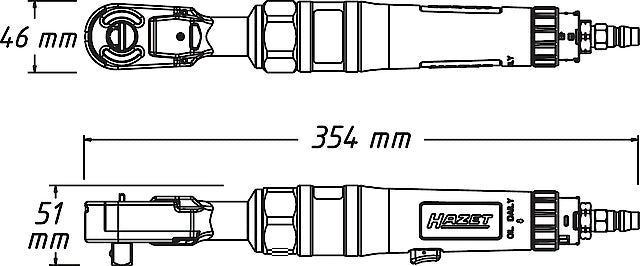

  • Dimensions / length: 354.3 mm

  • Net weight: 1.39 kg

  • Tightening torque max.: 95 Nm

  • Sound pressure level: 88.3 dB(A) Lp A

  • Revolutions per minute: 160

  • Air requirement: 77 l/min (1.3 l/sec)

Discover the Hazet 1/2" (12.5mm) Square Solid High Performance Air Ratchet 9022P-1 at OZ SWISS EUROPEAN TOOLS – your trusted source for quality tools and equipment!

Manual/impact operation

For impact operation

Tightening torque maximum

95 Nm

Output

1/2 inch (12.5 mm) square, solid

Net weight

1.39 kg

Air requirement

77 l/min

Forward and reverse

single-stage (right/left)

Dimensions

354.3 mm

Vibration acceleration

3.00 m/s2

Length

354.3 mm

Sound pressure level

88.3 dB(A) Lp A

Revolutions per minute

160

Thread type air inlet

BSPT

Air connection inlet

Inside thread 12.91 mm (1/4″)

Coupler plug

Nominal size 7.2 (included)

Sound power level

99.3 db(A) Lp W

Air requirement [l/sec]

1.3 l/sec
